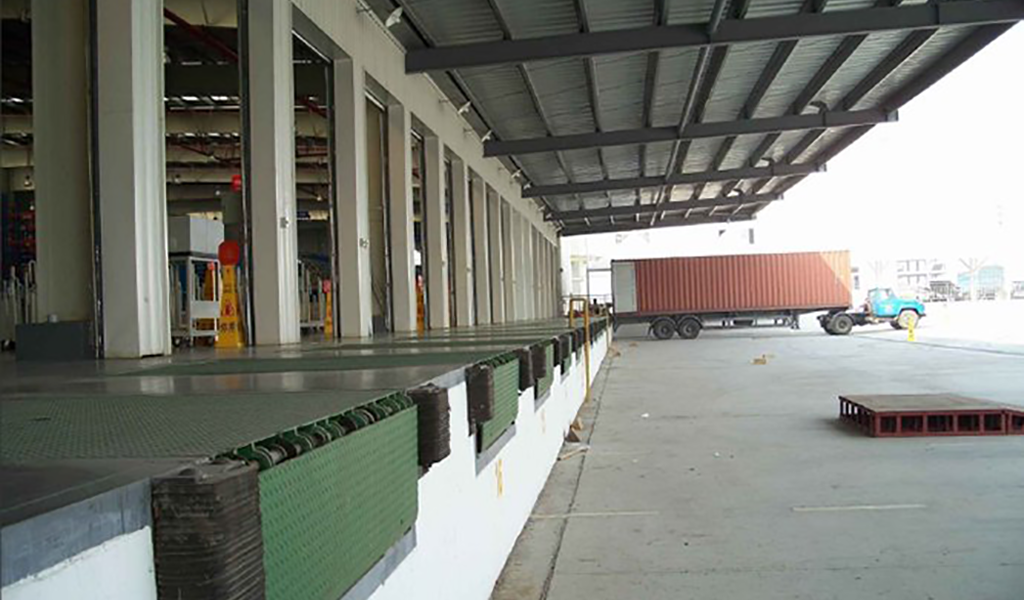

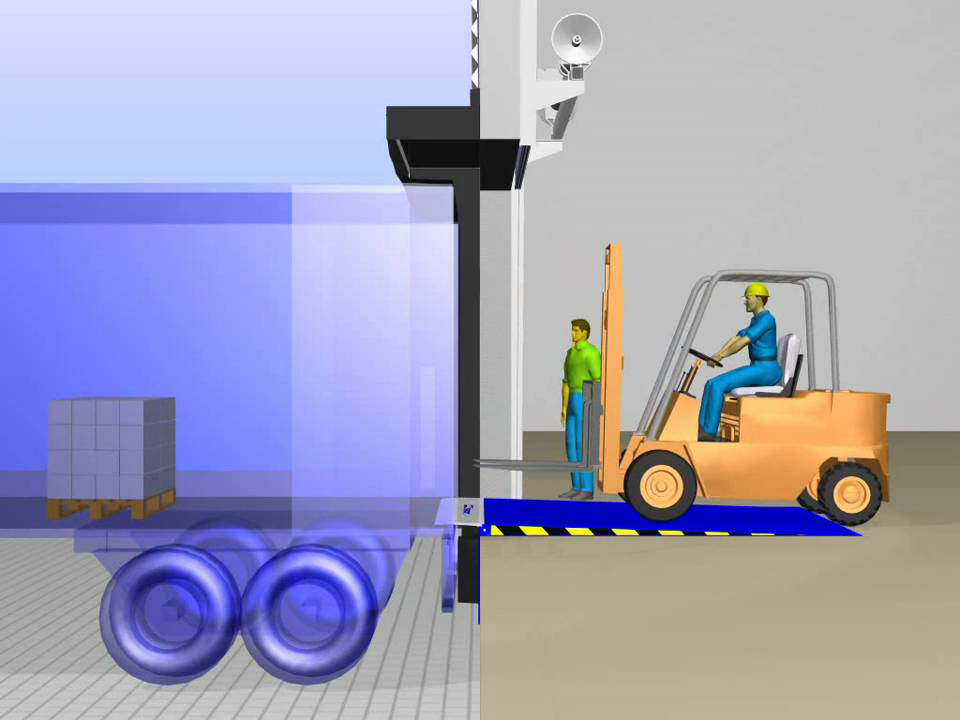

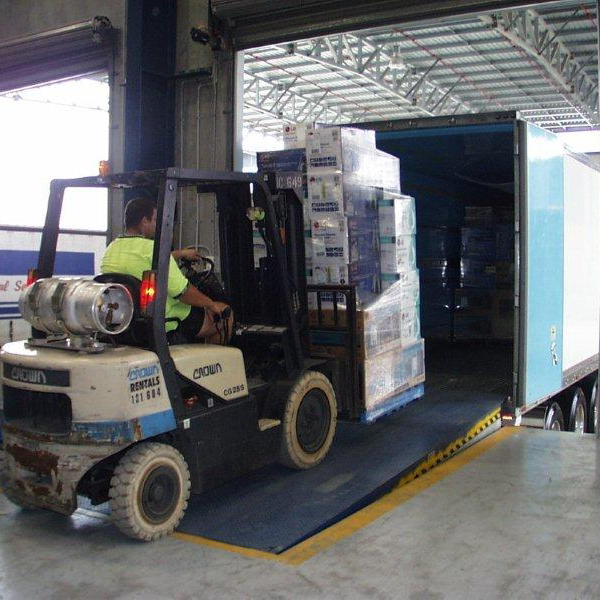

Widely used in logistics centers, warehouses and despatch area of factories. It can obviously improve efficiency of goods transfrerring. A hydraulic motor drives the platform up and down, realizing seamless joint between room ground and truck floor. Forklifts can transfer goods quickly.
Specifications
- Power supply: Single-phase 220 ± 15%V, 50/60Hz, or 380V ± 15%V, 50/60Hz
- Power of motor: 0.75KW – 2.2KW
- Standard size: 2500x2000x600 (can be customized)
- Load capacity: 6000 kg/10000 kg/15000 kg
- Adjusting scope: -300 mm to +350 mm
Model characteristics
- Weight-load stability: The overall assembly can bear 120% load of standard nomanal load capacity. Under static pressure of 24 hours, the deformation is within 3mm. And after pressure released, the deformation will recover.

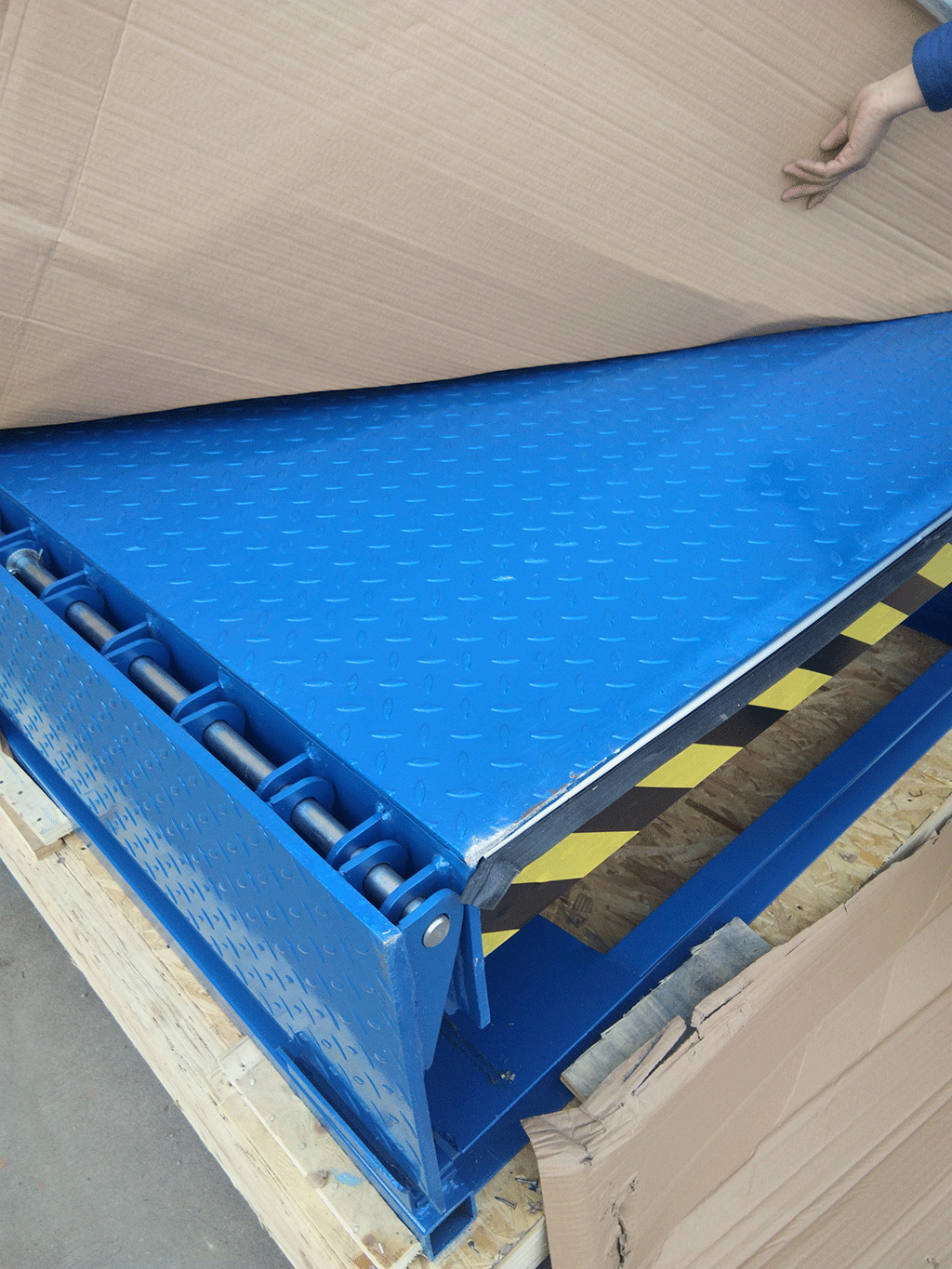

- Platform ground: Platform ground is made from high-strength 8mm or above thick steel plate. Surface is processed with groove milling to make it anti-skid.
- Hinge and shaft: Are Super-high-temperature Heat Treated, To Reduce its deformtion
- Driving system: Whole set of hydraulic drive station is imported from Europe, with stable power output. It can work under high frequency because of very low work temperature of oil. High standard seal avoids oil leaking.
- Surface treatment: Coated with epoxy resin paint, very durable and high anti-corrosive.
