General Informal

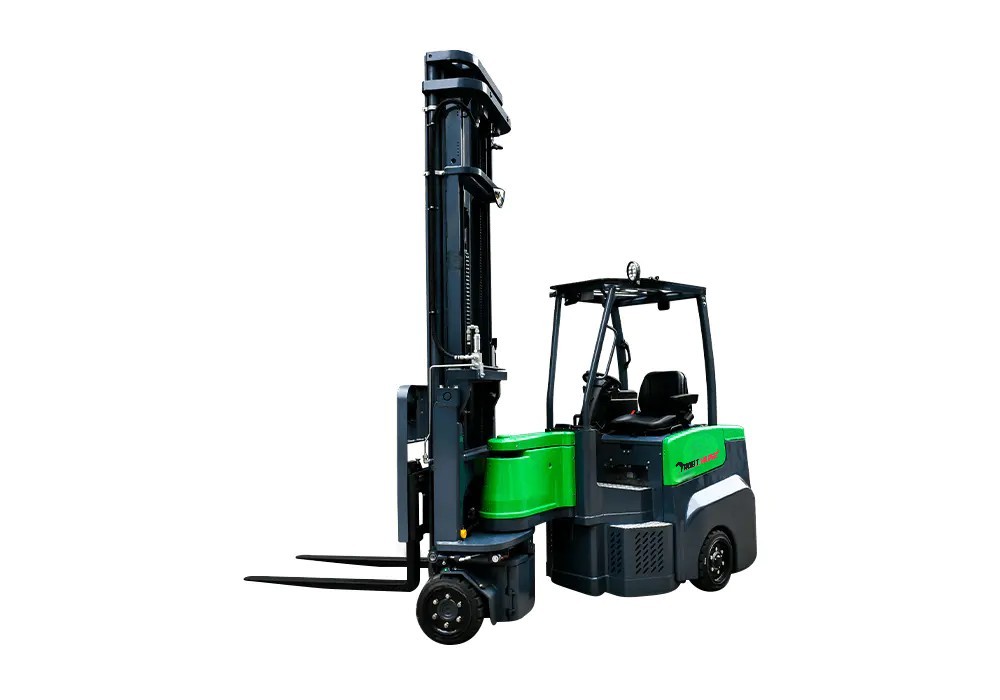

The articulated forklift can load 2 tons and the max lifting height can be 12.5m. Adopting front single drive mechanical differential bridge design, maintenance free full AC motor, large speed ratio gearbox which provides a greater climbing ability. The articulated design is perfect for very narrow aisles’ operation.

Comfort

• Adopting new concept and novel streamlined design, the visual effect is greatly improved. This articulated forklift is a reliable choice with compact and simple appearance.
• Adopting wide view mast design with wireless camera and video display.

Convenience

• International advanced MOSFET AC controller system enables the forklift to be controlled by computer program for walking, steering, lifting, and tilting.
• Large-angle fully opened cover and removable rear door panel are convenient for battery replacement and maintenance.

Performance

• AC motor has no maintenance cost such as replacing carbon brush. Reliability and long service life can be guaranteed with high-efficiency AC power system, complete protection functions, speed sensor and temperature sensor.
• Safety is greatly improved by OPS function as standard configuration.
• Equipped with high-brightness laser light, the operator can have a reliable reference when stacking in very narrow aisle.

Technical information
