General Information

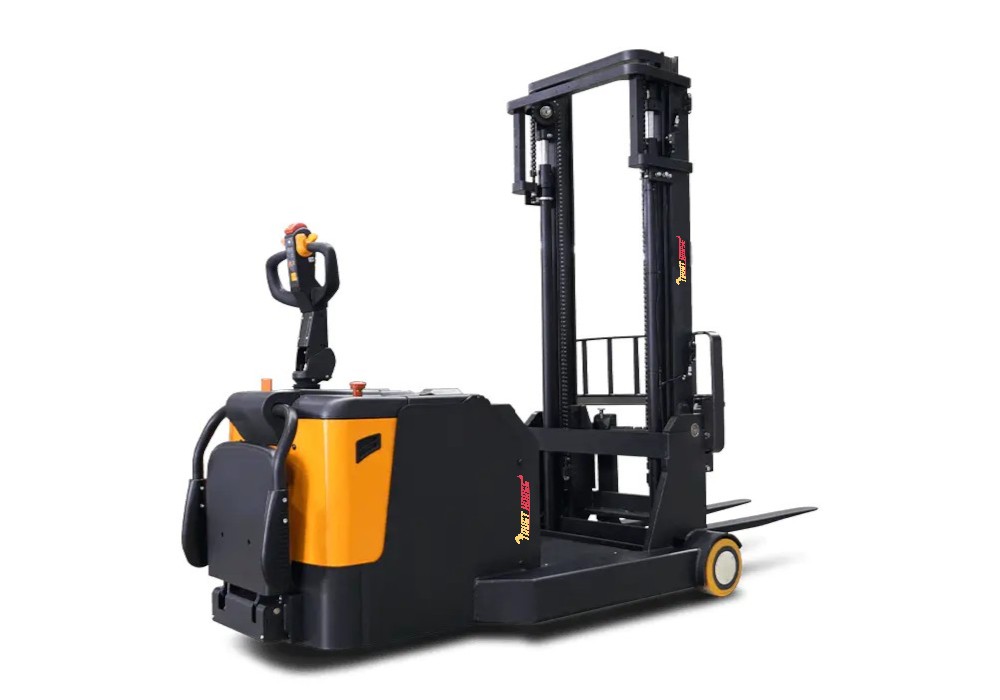

PS12/15CB-C is an electric counterbalanced stacker which is suitable for versatile applications. It optional to have the rider platform or not, with rated capacity up to 1500kg. Low energy consumption with long working hours, suitable for loading and unloading goods from factories, warehouses, lorries etc.
Quality industrial lead acid battery
- Long operating time. PS12BCB-C comes with 24V/210Ah battery and PS15CB-C with 24V/270Ah battery (optional 350Ah).
Emergency switch
- Emergency switch ensures the safety of driving.
Strong tray
- The robust battery cover comes with a storage area for tools and stretch film used for packaging.
Foldable platform
- Optional suspension foldable platform with sideways protective arms, makes operations faster and safer.
Powerful AC vertical drive system
- AC vertical drive system increases performance, reduces maintenance cost and improves working efficiency.
Electric power steering
- Electric power steering makes the operating effortless. Maneuvering in narrow spaces becomes a lot easier with electric power steering.
High performance pump
- The high performance pump ensures the accurate positioning of the fork during the lifting and lowering process, which makes the acceleration/deceleration more stable and safer.
|
Characteristics |
||||
|
1.2 |
Manufacturer's type designation |
|
PS12CB-C |
PS15CB-C |
|
1.3 |
Power (electric, diesel, gasoline, LPG, electrical) |
|
Electric |
|
|
1.4 |
Driving method (manual, pedestrian, standing, driving, picking) |
|
Pedestrian/Standing |
|
|
1.5 |
Load Capacity |
Q(t) |
1.2 |
1.5 |
|
1.6 |
Load Center Distance |
c(mm) |
500 |
|
|
1.8 |
Front overhang |
x(mm) |
135 |
|
|
1.9 |
Wheelbase |
y(mm) |
1410 |
1550 |
|
Weight |
||||
|
2.1 |
Dead weight (including battery) |
kg |
1850 |
130 |
|
2.2 |
Axle load at full load, drive side/load side |
kg |
400/2650 |
450/3180 |
|
2.3 |
Axle load at no load, drive side/load side |
kg |
900/950 |
1020/1110 |
| Wheel | ||||
|
3 . 1 |
Tires |
|
Polyurethane wheel |
|
|
3.2 |
Wheel size, drive side |
∅xw(mm) |
∅230x82 |
|
|
3.3 |
Wheel size, load bearing side |
∅xw(mm) |
∅230x100 |
|
|
3.4 |
Number of wheels (x= drive wheels) drive side / load-bearing side |
|
1x/2 |
|
|
3.5 |
Wheelbase (front), drive side |
b10(mm) |
/ |
|
|
Dimensions |
||||
|
4.1 |
Lowered mast height |
h1 (mm) |
2400 |
2100 |
|
4.2 |
Free lift height |
h2 (mm) |
0 |
1500 |
|
4.3 |
Lift height |
h3 (mm) |
3600 |
4500 |
|
4.4 |
Extended mast height |
h4 (mm) |
4200 |
5395 |
|
4.5 |
Lowered height |
h13(mm) |
40 |
|
|
4.6 |
Overall length |
l1 (mm) |
2790 |
2927 |
|
4.7 |
Length to face of forks |
l2 (mm) |
1840 |
1977 |
|
4.8 |
Overall width |
b1 (mm) |
1090 |
|
|
4.9 |
Fork dimensions |
s/e/l(mm) |
35/100/950 |
|
