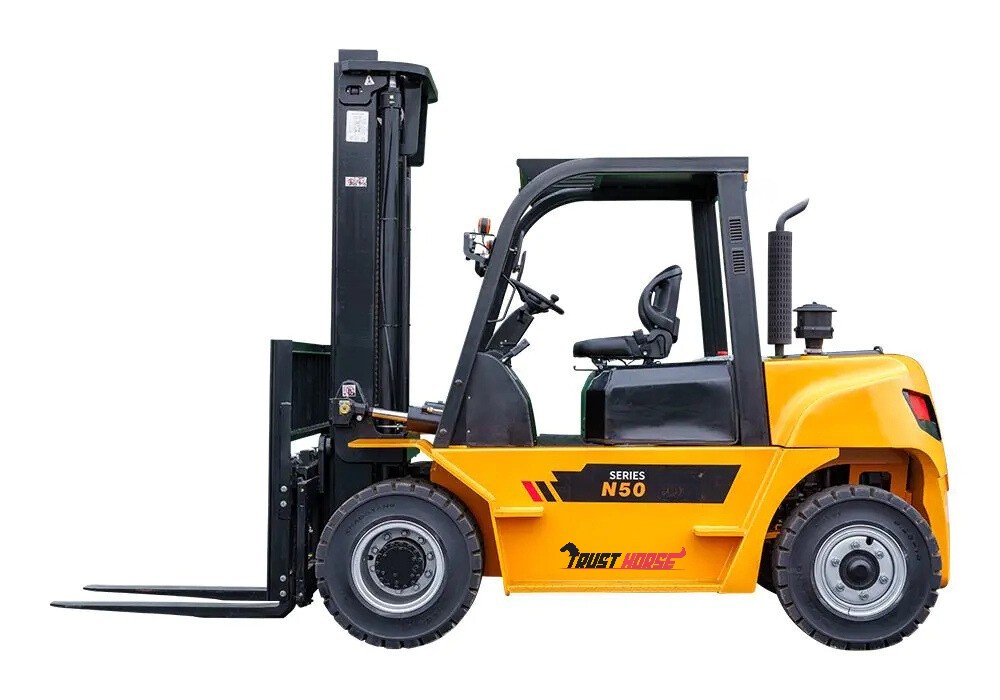

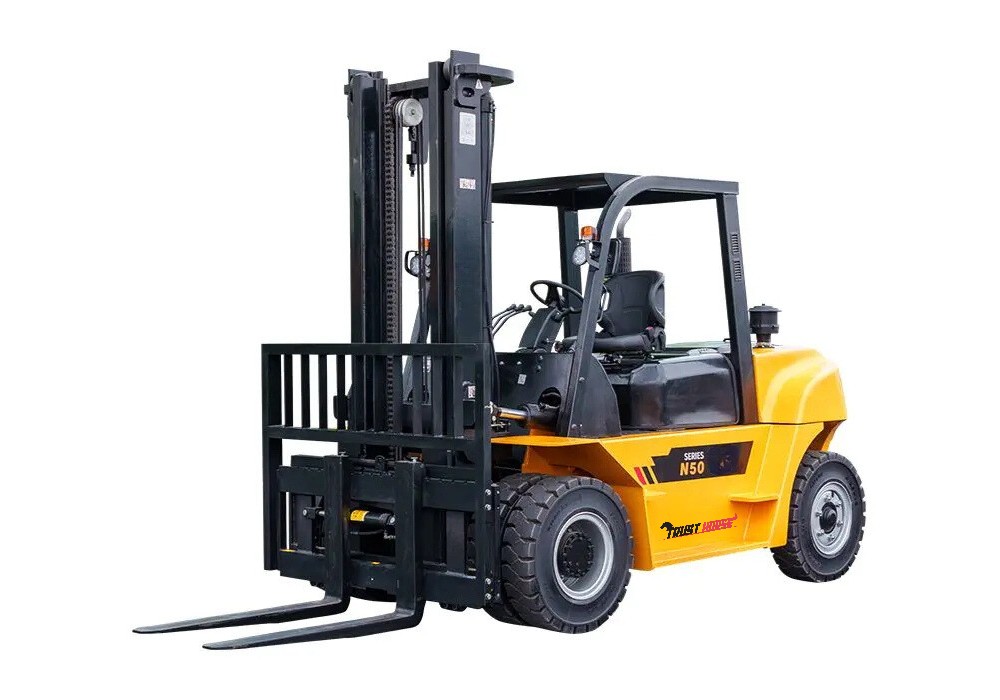

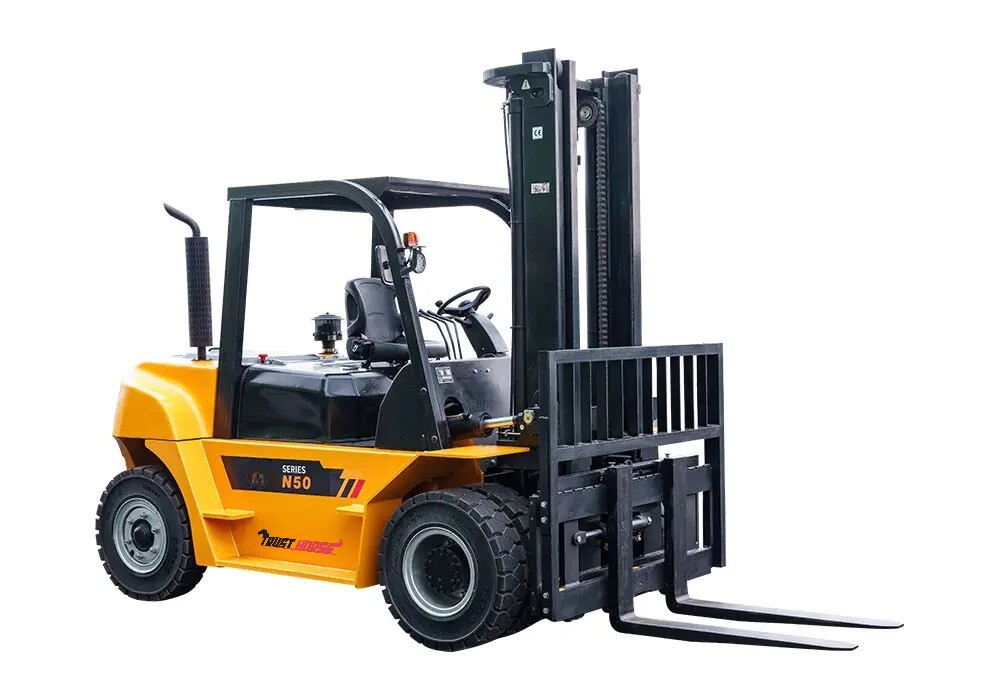

General Information
- Model: FD50T/FD60T/FD70T/FD80T/FD100T
- Load capacity: 5000 - 10000kg
- Max lift height: 6000mm
Trust Horse 5.0T-10T diesel forklifts are especially designed for heavy duty applications maximum efficiency and lowest operating cost. It adopts leading design, manufacturing technology and reliable power train and hydraulic systems. All models have been tested by the market that they can be trusted for all industries and get recognition from millions of clients across the worldwide.
Reliability & Performance
- Scientific design and manufactured truck body combines superior suspension power train makes the forklift outstanding in performance and operation. The power train includes the well-known engines like Isuzu, Cummins, Xichai and Japanese level technology transmission.
- Reliable hydraulic system adopts Japanese Shimadzu valve and pump or other brands with similar quality level, it ensure the high lifting and steering speed.
- Advanced Cooling technology matching with large capacity radiator makes sure the forklift can work well even in hot area.
- The brake system with accumulator makes the braking fast respond and more smooth.
Safety & Ergonomics
- OPS, Seat switch ensures a safe operation.
- Wide view mast can always give operator a good visibility.
- Strong OHG protects the operator from any falling objects.
- Ergonomics design with large foot space, head room, adjustable steering wheel and comfortable seat.
Easy Maintenance

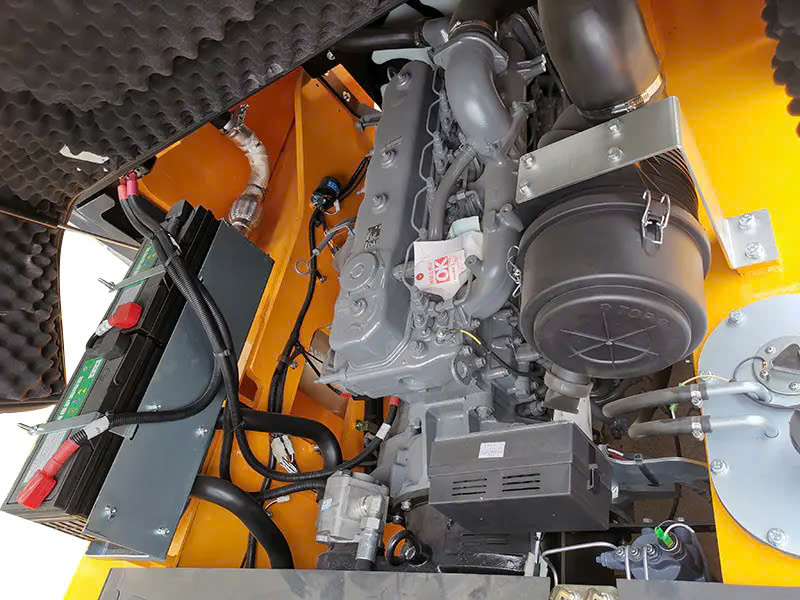

- Nearly 90 degrees engine hood makes daily maintenance much easier, all part can be reached quickly.
- Rear cover could be as well for a better checking of the radiator.
- Optimized internal parts layout.
Technical Information
|
General |
1 |
Brand |
|
Trust Horse |
||||
|
2 |
Model |
|
FD50T |
FD60T |
FD70T |
FD80T |
FD100T |
|
|
3 |
Power Type |
|
Diesel |
|||||
|
4 |
Rated load Capacity |
Q(kg) |
5000 |
6000 |
7000 |
8000 |
10000 |
|
|
5 |
Load Centre |
C(mm) |
600 |
|||||
|
Characteristic & Dimension |
6 |
Rated Lift Height |
H3(mm) |
3000 |
||||
|
7 |
Free Lift Height |
H2(mm) |
152 |
152 |
152 |
120 |
120 |
|
|
8 |
Fork Size (L*W*T) |
mm |
1220x150x60 |
1220x150x60 |
1220x150x65 |
1220x175x75 |
1220x175x80 |
|
|
9 |
Mast Tilt Angle (F/R, α°/β°) |
deg |
6°/12° |
|||||
|
10 |
Fork Overhang (Wheel Center to Fork Face) |
X1(mm) |
585 |
585 |
585 |
721 |
721 |
|
|
11 |
Rear Overhang |
X2(mm) |
640 |
640 |
720 |
760 |
760 |
|
|
12 |
Ground Clearance (Bottom of Mast) |
H7(mm) |
200 |
200 |
200 |
250 |
250 |
|
|
13 |
Length to Face of Fork (Without Fork) |
L1(mm) |
3510 |
3510 |
3590 |
4040 |
4270 |
|
|
14 |
Overall Width |
B1(mm) |
1996 |
1995 |
1996 |
2165 |
2166 |
|
|
15 |
Mast Lowered Height |
H1(mm) |
2515 |
2515 |
2615 |
2695 |
2845 |
|
|
16 |
Mast Extended Height (With Backrest） |
H4(mm) |
4437 |
4437 |
4437 |
4020 |
4260 |
|
| Performance |
17 |
Overhead Guard Height |
H5(mm) |
2445 |
2445 |
2445 |
2520 |
2540 |
|
18 |
Turning Radius （Outside） |
Wa(mm) |
3260 |
3280 |
3340 |
3700 |
4100 |
|
|
19 |
Min.Aisle width for pallets |
Asl(mm) |
5285 |
5285 |
5365 |
5645 |
6045 |
|
|
20 |
Travel Speed (No Load) |
km/h |
23/21 |
23/21 |
23/21 |
21/18 |
19/16 |
|
|
21 |
Lifting Speed (No Load/Full Load) |
mm/sec |
530/500 |
530/500 |
530/490 |
400/360 |
380/328 |
|
|
22 |
Lowering Speed (No Load/Full Load) |
mm/sec |
≥300/≤600 |
≥300/≤600 |
≥300/≤600 |
≥300/≤600 |
≥300/≤600 |
|
|
23 |
Max.Drawbar Pull (Full Load) |
KN |
53 |
53 |
52 |
58 |
57 |
|
|
24 |
Max.Gradeability(Full Load) |
% |
32 |
27 |
24 |
20 |
20 |
|
| Chassis |
25 |
Tyre (Front x 4) |
mm |
8.25-15-14PR |
8.25-15-14PR |
8.25-15-14PR |
8.25-20-14PR |
9.00-20-14PR |
|
26 |
Tyre (Rear x 2) |
mm |
8.25-15-14PR |
8.25-15-14PR |
8.25-15-14PR |
8.25-20-14PR |
9.00-20-14PR |
|
|
27 |
Front Tread |
mm |
1470 |
1470 |
1470 |
1600 |
1600 |
|
|
28 |
Rear Tread |
mm |
1700 |
1700 |
1700 |
1700 |
1700 |
|
|
29 |
Wheelbase |
Y(mm) |
2250 |
2250 |
2250 |
2500 |
2800 |
|
| Weight |
30 |
Total Weight |
|
7980 |
8640 |
9350 |
11850 |
12900 |
|
31 |
Front Axle Weight Distribution (Full Load) |
|
11660 |
13050 |
14570 |
17800 |
20610 |
|
|
32 |
Rear Axle Weight Distibution (Full Load) |
|
1320 |
1590 |
1780 |
2050 |
2290 |
|
|
33 |
Front Axle Distribution (No Load) |
kg |
4010 |
3860 |
3860 |
4740 |
5660 |
|
|
34 |
Rear Axle Weight Distribution (No Load) |
|
3970 |
4760 |
5490 |
7110 |
8240 |
|
| Power & Transmission |
35 |
Battery |
V/Ah |
24/90 |
||||
|
36 |
Fuel Tank Capacity |
L |
120 |
|||||
|
37 |
Transmission Type |
|
Powershift |
|||||
|
38 |
Transmission Stage (FWD、RVS) |
|
2/2 |
|||||
|
39 |
Operating Pressure (For Attachments) |
Mpa |
20 |
|||||
