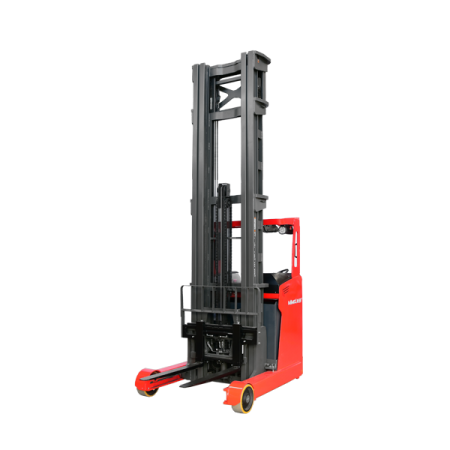

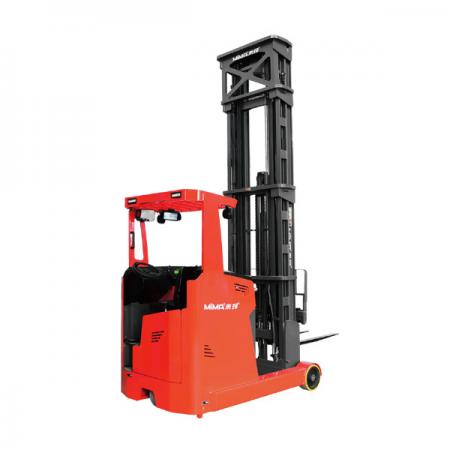

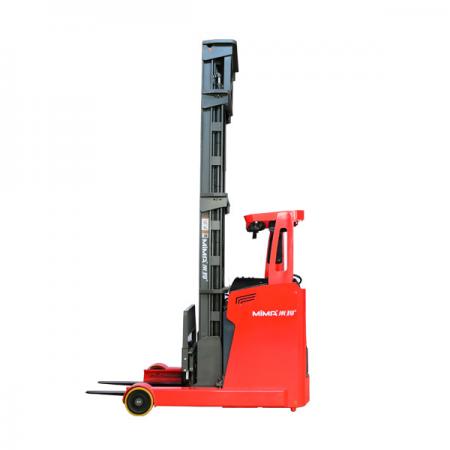

MFZ series is a new-design reach truck, with loading capacity from 1,600-2,000 kg. The mast can be moved forward or backward as a whole, with a smaller body and turning radius for operation in narrow aisles and higher efficiency. Electric forklifts are also compact and investment costs will be saved in the long term to present themselves as optimal option for small and medium-sized enterprises which have one shift (8 hours/shift).
Applicable to：
- Medium storage density and high working turnover rate;
- Narrow aisle stacking.
PRODUCT OVERVIEW:
- Brand: MiMA
- Assembled in China.
- Product code: MFZ16 / MFZ20
- Description:
- Lift height: : 3000 - 6000 mm.
- Rated load capacity: 1600 - 2000 kg.
MiMA electric forklifts are equipped with American Curtis circuit boards, German Hepu technology engines, Wannan lift engines, ... and top accessories but very competitive costs of production. They are backed by a two-year warranty (or 2,000 hours) and preferential maintenance service, ensuring that they are always ready to work at customers’ warehouses.
<iframe width="560" height="315" src="https://www.youtube.com/embed/NOzKN-ZP1Xo" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>
PRODUCT DETAIL:
Features:
- Four Wheel Braking
- Equipped with front and back wheel braking, with a better braking performance, which is suitable for using on the wet and frozen ground. All this can guarantee operator safety;
- Ergonomics Design
- Integrated operation joystick design with multi-function display that shows wheel position, which can make operation more comfortable and convenient;
- Adjustable seat can provide the operator with the most comfortable experience;
- Excellent Weight-bearing Mast
- No loading capacity loss within 6,000 mm, and excellent loading performance at super-high position;
- Strong Endurance
- Fully-equipped AC drive system for high-efficiency and energy-saving to meet multiple operation requirements under heavy working conditions;
Key specifications:
|
Manufacturer |
|
MiMA |
MiMA |
MiMA |
MiMA |
||
|
Model |
|
MFZ16 |
MFZ16SQH |
MFZ20 |
MFZ20SQH |
||
|
Power type |
|
Battery |
Battery |
Battery |
Battery |
||
|
Operation Type |
|
Seated |
Seated |
Seated |
Seated |
||
|
Service weight（incl. battery） |
kg |
3250 |
4350 |
4000 |
4670 |
||
|
Rated capacity |
Q(kg) |
1600 |
1600 |
2000 |
2000 |
||
|
Load center |
C(mm) |
500 |
500 |
500 |
500 |
||
|
Lift height |
h3(mm) |
3000 |
6000 |
3000 |
6000 |
||
|
Fork dimension |
l/e/s(mm) |
1070/100/35 |
1070/100/40 |
1070/100/40 |
1070/100/40 |
||
|
Front overhang |
x(mm) |
220 |
205 |
215 |
205 |
||
|
Turning radius |
Wa(mm) |
1700 |
1872 |
1798 |
1872 |
||
|
Max. gradeability |
|
10% |
10% |
10% |
10% |
10% |
10% |
|
Travelling speed, laden/unladen |
km/h |
8.5/10 |
8.5/10 |
8.5/10 |
8.5/10 |
||
|
Lifting speed , laden/unladen |
mm/s |
210/340 |
200/300 |
210/340 |
260/360 |
||
|
Lowering speed, laden/unladen |
mm/s |
300/250 |
300/250 |
300/250 |
300/250 |
||
MiMA can offer you hand trucks, pedestrian controlled trucks, stand-on pallet trucks, reach trucks, balance trucks; electric tow tractors, 3-way pallet stackers (VNA), multi-direction trucks, special trucks and other customized types and options. In addition, MiMA can provide our customers with logistics handling solutions at their warehouses. Due to product serialization and standardization, all MiMA products are widely used in medicine, food, chemical, home appliance, textile, electronics, machinery, furniture and other industries.
