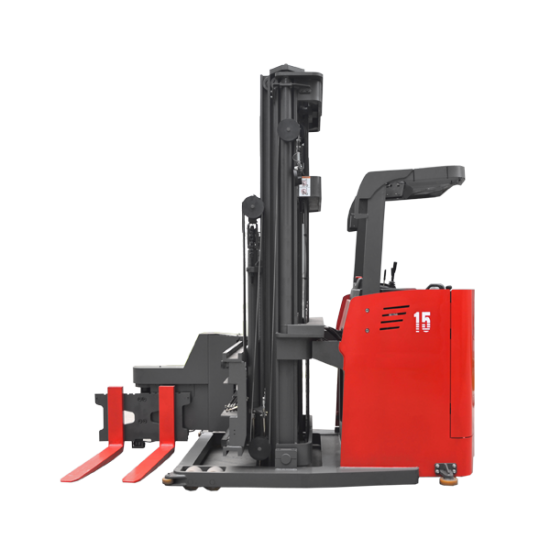

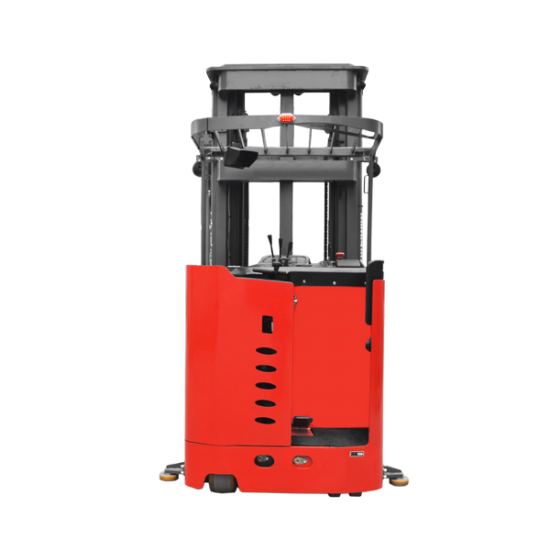

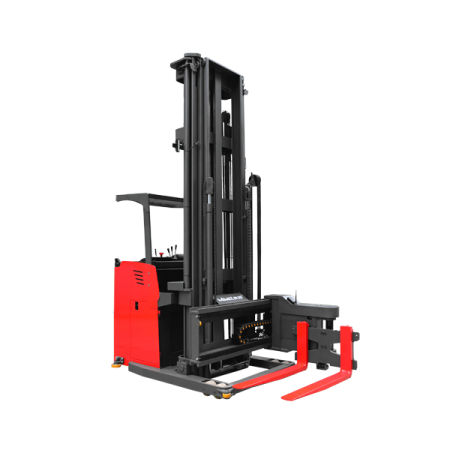

The 3-way pallet stacker is the first choice of intensive storage, which is mainly used in logistics, medicine and food industries and for low-temperature cold storage. The 3-way pallet stacker can be rotated 180 degrees and perform left-right side shifts without body turning. Electric forklifts help reduce noise and dust in the warehouses. Electric forklifts are also compact and investment costs will be saved in the long term to present themselves as optimal option for small and medium-sized enterprises which have one shift (8 hours/shift).

Applicable to:

• Stacking in ultra-narrow aisles and high shelf design
• Horizontal handling
• Cargo loading/unloading.

PRODUCT OVERVIEW:

• Brand: MiMA
• Assembled in China.
• Product code: MF15
• Description:

- Lift height: : 3000 - 4500 mm.
- Rated load capacity: 1000 - 1500 kg.

• Minimum order: Direct contact for further information
• Schedule of delivery: Direct contact for further information
• Main markets: Domestic

MiMA electric forklifts are equipped with American Curtis circuit boards, German Hepu technology engines, Wannan lift engines, ... and top accessories but very competitive costs of production. They are backed by a two-year warranty (or 2,000 hours) and preferential maintenance service, ensuring that they are always ready to work at customers’ warehouses.

<iframe width="560" height="315" src="https://www.youtube.com/embed/WHca8s0uETY" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>

PRODUCT DETAIL:

Features:

1. The stacker can be rotated 180 degrees and perform left-right side shifts without body turning, with high strength mast design. The lifting height is 1,500mm at its minimum and 9,000m at its maximum. The 3-way pallet stacker can improve space utilization and storage capacity.
2. Advanced Curtis controller and fully-equipped AC system for improved safety, stability, efficency, energy saving and environmental protection.
3. Maintenance-free AC drive system for more accurate and faster responses. The drive system has extended life cycle, lowered noise and reduced maintenance costs.
4. Large section mast structure design ensures the rigidity of mast and improve loading performances, which is well-fitted to high shelves.
5. Stable and reliable hydraulic system.
6. Side pull type battery for convenient charging and maintenance.

Technical Specifications:

Advantages:

Safety

• A set of three braking systems, including regenerative braking, mechanical disc braking and double braking, for increased safety and reliability;
• Rotation and side shift interlock functions help avoid the wrong operation in the roadway, ensuring operator safety;
• The lifting system with descending buffer and lifting electronic limit can offer good buffering for stacking at the lowest and highest positions, ensuring smooth and safe operation.
• High definition wireless video system ensures driver’s vision during high stacking, improving work efficiency and safe operation.

Easy, flexible and comfortable operation

• Standard electronic power steering eases operation; the smaller turning radius and a narrow body width ensures flexible and convenient operation;
• Forks can be 180° rotation and left-right side shift, which is convenient for handling and stacking while improving efficiency;
• The body stability system that comes with a rear bumper improves the stability during high stacking and operation.

High automatic

• Guiding function with options to install and construct underground guiding lines or shelf guiding rails, greatly reducing the cost of warehouse construction and time required for construction. With this function, the truck automatically corrects its driving directions in roadway instead of manual operation of steering wheel, reducing the labor intensity of operators and improving the labor efficiency. The truck performs automatic adjustment to avoid derailment and direction deviation for maximum safe driving in roadway;
• Semi-automatic function for lift height selection: The lift height can be pre-determined for exact height of stacking, greatly reducing the labor intensity of operators and improving labor efficiency;
• Other options are provided in terms of safety protection such , for example, during lifting and walking, safety protection of entry and exit roadway, speed limit during high stacking and so on, …

MiMA can offer you hand trucks, pedestrian controlled trucks, stand-on pallet trucks, reach trucks, balance trucks; electric tow tractors, 3-way pallet stackers (VNA), multi-direction trucks, special trucks and other customized types and options. In addition, MiMA can provide our customers with logistics handling solutions at their warehouses. Due to product serialization and standardization, all MiMA products are widely used in medicine, food, chemical, home appliance, textile, electronics, machinery, furniture and other industries.
